The Moon is easy to recognize and harder to read. From a distance, its light and dark patches make a face. In a map, those patches become places that can be compared, measured and interpreted. The change begins with a question: what kind of evidence does this image offer?

The camera view below comes from a 2015 USGS map assembled from the Lunar Reconnaissance Orbiter’s Wide Angle Camera. Many observations become one continuous mosaic. Its companion sheet uses measurements from the Lunar Orbiter Laser Altimeter, or LOLA, to describe surface elevation. The same ground appears in two different visual languages. Inspect source

Start in the central near-side window. Follow a dark plain, then reveal the blue elevation map over it. Its outline may remain recognizable while its meaning changes. Darkness in a camera image is not a height measurement; blue in this map is a choice in an elevation key.

The broad dark maria are volcanic plains. Their name, inherited from the Latin for seas, preserves an earlier way of imagining the Moon. Here, the comparison helps separate the named landscape, its appearance and its topography. None is a substitute for the others. Inspect source

There is a zero. It is not sea level.

An elevation map needs a reference. On this sheet, heights are measured above or below a sphere with a radius of 1,737.4 kilometres. Blue areas lie lower in that system. The color does not mean there is an ocean waiting at the bottom.

III / WHERE IS ZERO?ORIGINAL DIAGRAM

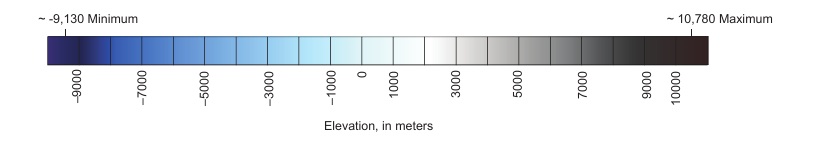

Source legend in metres. Blue indicates lower elevations; it does not indicate water. Approximate source range: −9.13 to +10.78 km.

Enlarge the original color key

USGS / NASA / ASU · Hare and colleaguesSource & rights +

Elevation legend — SIM 3316, sheet 2. USGS Scientific Investigations Map 3316.

USGS-produced map, public domain in the United States under the USGS information policy. The inspected sheets carry no separate copyright notice. Credit retains NASA, ASU and the map authors. This reading copy does not imply endorsement.

Inspect / copy citationOpen source record ↗Open original source file ↗

Relief adds another choice. The source’s shading uses an imagined light from the west, 45° above the horizontal, with no vertical exaggeration. It helps the eye read shape. It is not a record of sunlight at the moment you open this page. Color describes height; shading helps describe form. Inspect source

Choose the Orientale window and follow its rings. Then choose Imbrium and compare the broad interior with its surrounding terrain. These are reading windows in a published map, not new surveys. The colored raster does not provide a trustworthy height for every pointer position, so this viewer offers no invented elevation readout.

The coordinate frame matters too. These sheets use the Moon’s mean Earth/polar axis frame, planetocentric latitude and east-positive longitude. Their Mercator panel stops at 57° north and south; the original publication supplies separate polar views. A familiar rectangular map shape does not make this Earth’s coordinate system.

A colored boundary makes a claim.

The geological Moon introduces a third kind of reading. A colored region represents a mapped unit; a line locates a contact or another mapped feature. The colors ask us to read a surface as a history, using the map’s unit descriptions and symbols.

The 2020 Unified Geologic Map brought six Apollo-era regional maps into a common scheme, alongside newer observations. Its authors describe reconciling units, joining regional boundaries and mapping surface features consistently. That work makes comparisons possible across regions that had previously been described in different ways. Inspect source

Compare the two hemispheres above without assigning an age from color alone. Where do broad regions dominate? Where do circular forms interrupt them? Those observations can guide a closer look, but the legend supplies the unit meanings. A bright patch is not automatically a young crater, and a shared hue across unrelated maps need not mean the same thing.

A map also has its own history. The source record documents a later version 2 correction to polygon alignment and contact visibility. The illustration shown here is the 2020 release image, not a fresh rendering of that corrected GIS dataset. Readers who need the analytical data should follow the versioned record. Inspect source

This is how the atlas can leave Earth without losing its method. Name the body, declare the frame, identify the evidence and keep the source within reach. A new world becomes readable through several maps held in conversation.
